San Francisco County 2024

04/11/2026

The CVRs are in two groups, “mail-in” and “in-person” (aka “precinct”). Mail-in ballots are processed centrally and the CVR identifiers are printed on the physical ballots. At the precinct, the scanners do not record the CVR identifier on the ballots, so we cannot match the precinct CVRs with their physical ballots as required by a CLCA.

It appears that (session.TabulatorId-session.BatchId) represents one “Session” of ballot scanning. All cards for some set of ballots are run through the scanner. If the batch of cards in the session remain together, then those can be the OneAudit pools. The downside is that there are multiple card styles in the same batch, so Npop is larger and diluted margins are smaller, on the order of 40% or so. (eg 569469/412231 = 1.38)

Here is a summary of one precinct using this grouping:

precinct=1, styles=[2], poolIds=[39-1, 43-1, 31-123, 31-124, 36-110, 36-179, 36-253, 36-254, 33-244, 36-256, 33-249, 28-78, 33-253, 33-255, 28-83, 28-84, 561-0, 26-144, 27-522, 27-525]
  count=18 contests=[1, 2, 3, 5, 9, 13, 14, 15, 18, 19, 20, 21, 22, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53] #contests=39
  count=89 contests=[29, 30, 31, 32, 33, 34, 35, 36, 37, 38] #contests=10
  count=89 contests=[1, 2, 3, 5, 9, 13, 14, 15] #contests=8
  count=89 contests=[18, 19, 20, 21, 22, 28] #contests=6
  count=89 contests=[39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53] #contests=15
    style=2 contests=[1, 2, 3, 5, 9, 13, 14, 15, 18, 28, 19, 21, 22, 20, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53] #contests=39
    agrees with sc=18
    cards agree with styleTypeContests
    cards are disjoint

We investigate the possiblilty that after the scan, the cards are separated by card style into seperate physical batches. All of the cards of the same style for all the scans at one precinct can be kept in the same batch. Then the OneAudit ballots are grouped by (precinct-cardStyle), and have a single card style, so Npop = Nc. (Its hard to know if this is a practical option, but simulating it shows us the expected tradeoff).

With this grouping, we ignore the sessions, and for example, get 5 card pools for precinct 1:

precinct=1
  pool1: count=18 contests=[1, 2, 3, 5, 9, 13, 14, 15, 18, 19, 20, 21, 22, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53] #contests=39
  pool2: count=89 contests=[29, 30, 31, 32, 33, 34, 35, 36, 37, 38] #contests=10
  pool3: count=89 contests=[1, 2, 3, 5, 9, 13, 14, 15] #contests=8
  pool4: count=89 contests=[18, 19, 20, 21, 22, 28] #contests=6
  pool5: count=89 contests=[39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53] #contests=15

Since we have the CVRs, we can create subtotals for whatever subset we want. The difficult part is to create physical batches of cards that can be reliably sampled. Both OneAudit scenarios dont care about the order of the cards within the batch, until the random seed is chosen. Then the ordering must match the CardManifest and must be preserved.

There are other possibilities, not yet investigated:

  1. If the card order within the scan session can be preserved, then we can match the CVR with physical cards and do a CLCA.
  2. SanFrancisco saves an image of the scanned cards pointed to by the ImageMask field: "ImageMask": "D:\\NAS\\SF November 2024 Consolidated General Election\\Results\\Tabulator00031\\Batch125\\Images\\00031_00125_000222*.*" This image could be used to do the manual audit. Presumably this could be done much faster, and perhaps allow a “ballot-at-a-time” audit that would eliminate the waste of guessing how many ballots to audit for each round.

We use the SF2024 case study to characterize the increased nmvrs needed for both kinds of OneAudits in a real-world example. We can easily simulate a CLCA for SF2024 by simply pretending that the precincts record the CVRS on the physical ballots, and so all CVRS can be matched to MVRs.

Comparison of CLCA and OneAudits

We ran the SF 2024 General Election 20 times (with different PRN seeds each time) for Session-Scan OneAudit, Precinct-Style OneAudit, and a single CLCA audit. In all cases there are no errors. Over 48 contests, there are 131 assertions, each with a different margin. Here is the spread of the OneAudits reletive to the CLCA, for each of the 131 assertions:

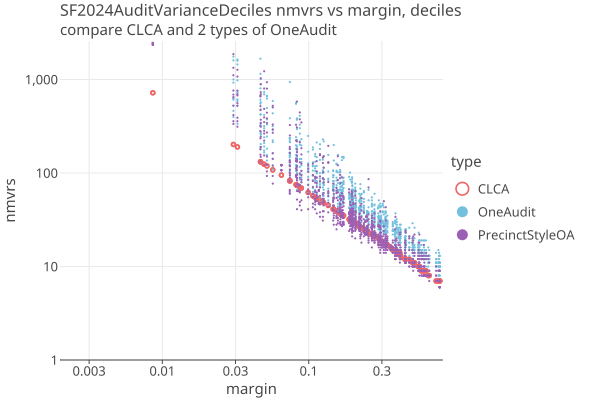

SF2024AuditVarianceDecilesLogLog

The same plot on a Linear scale:

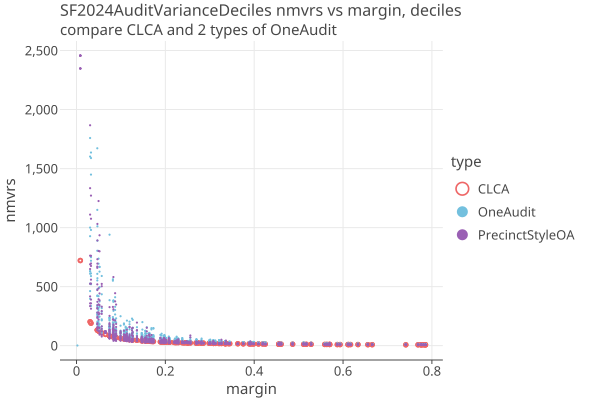

SF2024AuditVarianceDecilesLinear

The total mvrs needed are dominated by the assertions with the lowest margins. In practice, even for CLCA, contests with very small margins and/or that require a large percentage of the ballots for that contest would be removed from the audit. For SF2024, the top 2 contests (14 and 28) have recount margin less than .005, and might go to a full hand count immediately. For OneAudit, close contests may fail to complete when they exceed sample control constraints.

This table shows how CLCA and the OneAudits compare when n contests with the highest estimated sample size (usually the lowest margins, but not always) are removed from the audit. We use 20 runs to generate the distributions, and then show the average and stddev of the distributions:

removeN CLCA nmvrs OA nmvrs avg OA stddev SP nmvrs avg SP stddev OA/SP nmvrs OA/SP stddev
2 1660 8475 2052 6708 631 1.26 3.05
3 1036 4463 1289 3679 228 1.21 3.86
4 963 3790 1377 3300 576 1.15 4.16
5 782 2888 746 2426 182 1.19 1.76
6 700 2377 498 3166 577 0.75 2.18
7 668 1788 473 2027 260 0.88 4.92
8 570 1922 580 1470 163 1.30 2.62
9 526 1413 298 908 36 1.74 3.82
where
   removeN = remove top n highest-estimated-nmvrs contests
   CLCA nmvrs = number of nmvrs needed by CLCA in eimulated audit
   OA nmvrs avg = nmvrs needed by "Session Scan" OneAudit, average over 20 simulated audits
   OA stddev = standard deviation of nmvrs needed by Session Scan OneAudit, over 20 simulated audits
   SP nmvrs avg = nmvrs needed by "Precinct Style" OneAudit, average over 20 simulated audits
   SP stddev = standard deviation of nmvrs needed by Precinct Style OneAudit, over 20 simulated audits
   OA/SP nmvrs = OA nmvrs avg / SP nmvrs avg
   OA/SP stddev = OA stddev avg / SP stddev avg

The corresponding average amd stddev of the number of rounds needed for the two OneAudits. CLCA without errors will always just use one round.

removeN OA Nrounds avg OA Nrounds stddev SP Nrounds avg SP Nrounds stddev
2 2.95 .59 2.45 .50
3 3.25 .83 2.85 .35
4 3.35 .91 2.8 .51
5 3.05 .97 3.4 .49
6 3.2 .81 5.5 .74
7 3.2 .98 2.7 .46
8 3.1 .89 2.8 .57
9 3.05 1.02 2.0 .00 (?)

Raw data

OneAudit SessionScan results (12 hr 25 min)
2, 20, 8475.499999999998, 2052.970445476505, 2.95 , 0.5894913061275798
3, 20, 4463.200000000001, 1289.1720055911856, 3.25 , 0.8291561975888498
4, 20, 3790.5000000000005, 1377.4379659353085, 3.35 , 0.9096702699330126
5, 20, 2888.35, 746.8386890754924, 3.05 , 0.9733961166965892
6, 20, 2377.3, 498.7643832512502, 3.2 , 0.8124038404635961
7, 20, 1788.45, 473.4677892951114, 3.2 , 0.9797958971132711
8, 20, 1922.2500000000005, 580.365305217326, 3.0999999999999996 , 0.8888194417315588
9, 20, 1413.2, 298.50252930251696, 3.05 , 1.023474474522936

OneAudit PrecinctStyle results (3 hr 26 min)
2, 20, 6312.7, 671.7364885131669
3, 20, 5214.1, 333.63001963252646
4, 20, 3037.5, 330.9825524102442
5, 20, 2728.3999999999996, 417.56573135256195
6, 20, 2060.5000000000005, 224.2301273245859
7, 20, 1251.7500000000002, 95.76422870780092
8, 20, 1512.1000000000001, 221.7678741387039
9, 20, 1246.55, 77.93938349769005

(1 hr 51 min)
2, 20, 6708.850000000001, 631.986888708935, 2.45 , 0.49749371855331
3, 20, 3679.5500000000006, 228.50918471693862, 2.85 , 0.3570714214271425
4, 20, 3300.3999999999996, 576.0607086063065, 2.8 , 0.5099019513592785
5, 20, 2426.5, 182.74586178625222, 3.4 , 0.4898979485566356
6, 20, 3155.45, 577.7408999716049, 5.45 , 0.739932429347437
7, 20, 2027.5500000000004, 260.76070927193007, 2.7 , 0.45825756949558394
8, 20, 1470.2, 163.32685021147012, 2.85 , 0.5722761571129799
9, 20, 907.9499999999999, 35.76517160590732, 2.0 , 0.0

Previous results with Session Scan OneAudit (somewhat outdated)

Here we explore how CLCA and OneAudit differ when the n lowest-margin contests are removed from the audit:

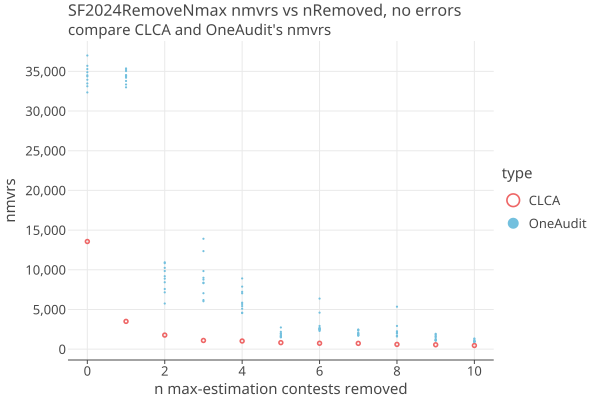

SF2024Removenmax

n nsuccess OA nsuccess CLCA est OA est avg ratio One Audit Spread
0 48 46.0 13562 34123 2.5 [32344, 33119, 33472, 33940, 34362, 34505, 34887, 35287, 35694, 36994]
1 47 46.0 3498 34126 9.8 [32985, 33342, 33785, 34196, 34337, 34466, 34525, 35035, 35178, 35366]
2 46 46.0 1771 8453 4.8 [5748, 7155, 7577, 8428, 8880, 9188, 9845, 10242, 10829, 10936]
3 45 45.0 1093 8378 7.7 [6032, 6181, 7044, 8312, 8373, 8762, 8994, 9836, 12348, 13907]
4 44 44.0 1024 5845 5.7 [4544, 4595, 5094, 5426, 5682, 5855, 7034, 7222, 7878, 8907]
5 43 43.0 820 1784 2.2 [1493, 1517, 1618, 1642, 1715, 1892, 1936, 2011, 2190, 2730]
6 42 42.0 742 2833 3.8 [2291, 2422, 2435, 2499, 2589, 2607, 2679, 2920, 4598, 6370]
7 41 41.0 727 1977 2.7 [1704, 1728, 1811, 1834, 1946, 2021, 2043, 2326, 2437, 2465]
8 40 40.0 597 2090 3.5 [1605, 1631, 1662, 1682, 1970, 2027, 2157, 2252, 2924, 5349]
9 39 39.0 552 1349 2.4 [1067, 1100, 1141, 1165, 1264, 1446, 1607, 1662, 1848, 1931]
10 38 38.0 459 1006 2.2 [903, 926, 942, 957, 974, 1009, 1012, 1047, 1250, 1342]
where
   n = remove top n estimated-nmvrs contests
   nsuccess = number of contests successfully audited by CLCA
   OA nsuccess = average number of contests successfully audited by OneAudit
   CLCA est = estimated nmvrs needed by CLCA
   OA est avg = average estimated nmvrs needed by OneAudit
   ratio = OA est avg / CLCA est
   One Audit Spread = spread of estimated nmvrs needed by OneAudit

Shangrla OneAudit details

The precinct physical ballots are kept in seperate batches by session, and the CVRs give us subtotals (and VoteConsolidator’s for IRV contests), so we can make each precinct into a OneAudit pool.

The card manifest for precinct ballots do not contain the CVR identifier, but rather only a pool name and an index. The precinct batches must be kept in order, so that as we choose random ballots to sample, the sampling is uniform over the batch.

Each precinct contains ballots with different ballot styles, i.e. different contests. The set of possible contests in each precinct is found by taking the union of all contests for all CVRs for that precinct. Each scanning session then becomes a OneAudit pool with this union as its possibleContests, and hasExactContests = false. This greatly increases the population size for each contest, which decreases its diluted margin and increases the number of cards needed for the audit (nmvrs). In addition, OneAudits have a large variance in nmvrs compared to an equivilent CLCA, which have no variance when there are no errors or phantoms.

Election Creation Notes

Downloaded files

From Dice dont Slice paper:

We consider the 2024 mayoral race in San Francisco as a case study. This instant-
runoff voting (IRV) contest included thirteen candidates. Daniel Lurie, who
received 26% of the first-choice selections and 55% after all but two candidates
were eliminated, defeated incumbent London Breed, who received 24% of the
first-choice elections and 45% of the final round votes.

The election produced 1,603,908 CVRs, of which 216,286 were for cards cast in 4,223 precinct batches
and 1,387,622 CVRs were for vote-by-mail (VBM) cards.

VBM CVRs are linked to the corresponding card, facilitating ballot-level
comparison auditing, but the in-person CVRs are not linked to individual cards,
only to tabulation batches. The CVRs were incorporated into the audit using
ONEAudit. RAIRE [4] was used to generate the assertions for the audit to test.

These numbers agree with ours.

From https://github.com/spertus/UI-TS/blob/main/Code/SF_oneaudit_example.ipynb:

Download the SF CVRs from https://sfelections.org/results/20241105w/detail.html
Under the 'Final Report' tab click "Cast Vote Record (Raw data) - JSON" to download a zip file with all the CVRs.

This zip file CVR_Export_20241202143051.zip (296 MB) contains 27,570 files:

BallotTypeContestManifest.json
BallotTypeManifest.json
CandidateManifest.json
Configuration.json
ContestManifest.json
CountingGroupManifest.json
CvrExport_0.json
CvrExport_10000.json
CvrExport_10001.json
CvrExport_10002.json
...

Input is in CVR_Export_20241202143051.zip. This contains the Dominion CVR_Export JSON files, as well as the Contest Manifest, Candidate Manifest, and other manifests.

We also have the San Francisco County summary.xml file from their website for corroboration. The summary.xml ncards match the CVRS exactly, so there are no phantoms.

Creating the SF2024 election

Follow the instructions in Getting Started to download and process the SF2024 data. This is only done once.

Using cases/src/test/kotlin/org/cryptobiotic/rlauxe/util/TestGenerateAllUseCases.kt:

Notes on election creation

We read the CVR_Export files and write equivilent csv files in our own “AuditableCard” format to a temporary “cvrExport.csv” file. We make the contests from the information in ContestManifest and CandidateManifest files, and tabulate the votes from the cvrs. If its an IRV contest, we use the raire-java library to create the Raire assertions.
