rlauxe

OneAudit Use Cases

last changed: 9/28/2025

OneAudit Use Cases

OneAudit inherent sample variance

For CLCA and Polling, if there are no errors, then the number of samples needed for the audit is completely determined by the margin and the betting method chosen. The presence of errors adds variance because the errors show up randomly in the sequence of sampled ballots.

OneAudit has inherent sample variance due to the random sequence of pooled ballots, even when there are no errors. See plots in the next section below.

Card Style Data for Pooled data

SHANGRLA code implementing OneAudit uses the SanFrancisco county 2024 primary and general elections for its use cases. There, the mail-in votes have Cvrs that can be matched to the physical ballots, while the in-person votes have Cvrs but cannot be matched to the physical ballots. In the latter case the ballots are kept by precinct in some fixed ordering which can be used in the ballot manifest.

For this case:

"With ONEAudit, you have to start by adding every contest that appears on any card in a tally
batch to every card in that tally batch and increase the upper bound on the number of cards
in the contest appropriately."

"The code does use card style information to infer which contests are on one or more cards
in the batch, but with the pooled data, we don't know which CVR goes with which piece of paper:
we don't know which card has which contests. We only that this pile of paper goes with this
group of CVRs. ONEAudit assigns the reported assorter mean to each CVR in the batch.
The mean is over all cards in the batch, since we don't know which cards have which contests."

(Phillip Stark, private communication)

The increase in Nc (upper bound on the number of cards in the contest) has the effect of decreasing the margin and increasing the number of samples needed. This scenario is called “OneAudit without styles”.

Im not sure why San Francisco County chooses to not map CVRs to physical ballots for in-person voting. If its a technical problem with the precinct scanners, then when that problem is overcome, this can be a CLCA audit, which is much more efficient. If its a deliberate privacy-preserving choice, perhaps it might be sufficient to use the CVRs to create a ballot manifest with CSD (Card Style Data). This essentially redacts the actual vote, but keeps a record of what contests are on each ballot. Note in this case, the physical ballots have to be tied to the CVR, usually by printing a ballot id on the physical ballot, and recording that id on the CVR.

A different use case is if all the ballots in a pool have the same ballot style, and we are told what it is. Then, anytime a ballot is sampled from the pool, we know what the ballot style is, so style-based sampling can be used. In this case, there is no CVR that has to be matched to the physical ballot. The ballot manifest identifies the physical ballot by a sequence number in a bundle of ballots, or similar.

These two use cases can both be audited with “OneAudit with styles”.

SF2024: Comparison of CLCA and OneAudit, with and without styles

We compare CLCA, OneAudit with styles, and OneAudit without styles on the SanFrancisco 2024 General Election. In reality we can only use OneAudit without styles, since the in-precinct CVRs are not associated with the physical ballots. We can use these CVRs to calculate the average assort values of the pools, however.

For simulating a OneAudit with styles, we use the in-precinct CVRS as Card Style Data for each ballot, and pretend that we can associate them with physical ballots. We dont use the in-precinct CVRS during the audit sampling.

For simulating a CLCA, we ignore the in-precinct vs mail-in distinction between the CVRS, and pretend that we can associate all CVRs with physical ballots, and use all the CVRs during the audit sampling.

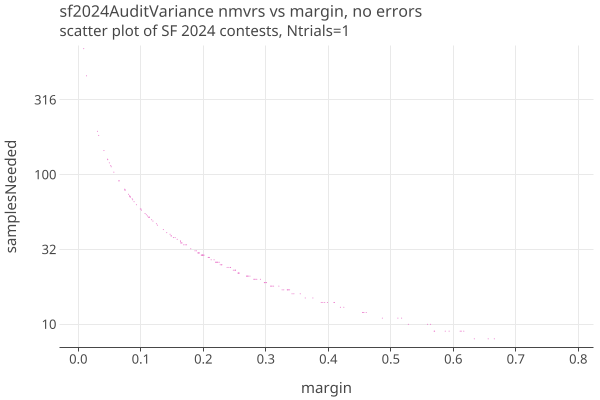

Here are the number of samples needed for each of the 164 assertions of all the contests of SF2024 for the CLCA simulation, when all ballots have an associated CVR and there are no errors:

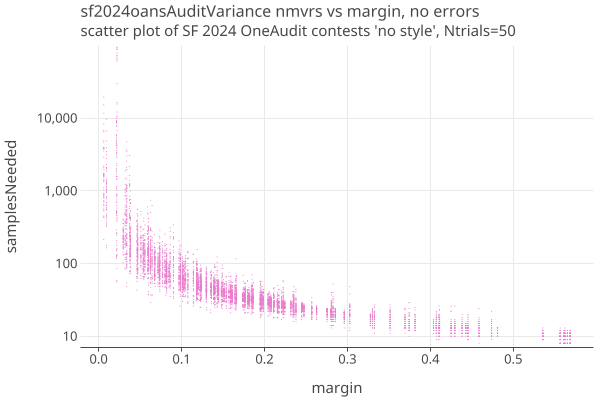

Here is the same election using OneAudit without styles. About 86% of the ballots have CVRs, the rest are in the precinct pools. We run the audit 50 times with different permutations of the actual ballots, and show a scatter plot of the results. The variance is due to the random order of the pooled ballots; the 50 trials are spread out vertically, since they all have the same margin:

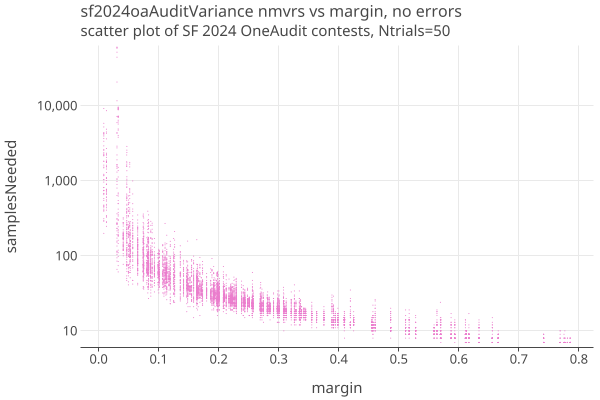

Here is the same election using OneAudit with styles:

Its not immediately obvious but the margins of OneAudit without styles are shifted to lower values compared to OneAudit with styles.
Other than the margin shift, the two versions of OneAudit look similar and do well for high margins, say > 10%.
Due to the large variance introduced by the pooled data, comparing just the average of the samples needed is misleading at low margins.

Here are all three audit types on a single scatter plot, showing the 80% quantile of 500 trials of number of samples needed for each assertion of the SF 2024 General Election, when there are no errors:

OneAuditNS (no card style data) plot uses the original margin (not the lowered margin), in order to compare it accurately to the other types.
The CLCA is smooth because it has no variance when there are no errors, while OneAudit show scatter for the same margins.
OneAudit needs about 3x, and OneAuditNS needs about 6x the samples at 5% margin, compared to a CLCA audit, for the 80% quantile, and gets progressively worse as margins get lower.
The actual values depend strongly on all the details of the use case, in particular the percent of pooled ballots, and the within-pool variance of the pooled data from the average pool assort value.

Using the 80% quantile for each contest overestimates the number of samples needed. This is especially true for OneAudit, where there is so much variation in the sample size distribution even when there are no errors. We are now testing a new strategy for OneAudit where we use the actual sample data to get the contest sample size (assuming no errors) for the first round. On subsequent rounds, we use the measured error rates with the OptimalComparision betting strategy.

Because we use the actual sample size only for choosing the number of first round ballots to draw, and not for the betting strategy or sampling algorithm, I believe that we are not violating the requirements of the “anytime P-value” property of the Betting martingales (TBD).

There is also increased efficiency when auditing many or all of the contests of an election at one time. In order to get a sense of how well these audit types might work in real elections, we ran the SF 2024 General Election 10 times (with different PRN seeds each time) for both the OneAudit and OneAuditNS. We used the actual sample to get the number of cards needed when there are no errors. This gives us a better sense of the absolute values and spread of a real election.

Here are 1 CLCA and 10 trials each of OneAudit and OneAudit NoStyle for SF2024. The total number of MVRS sampled were:

type	avg	trials	avg / CLCA
CLCA	1592	[1592]	1.0
OneAudit	5442	[2726, 2889, 3035, 3706, 4162, 4649, 4695, 5782, 10856, 11926]	3.4
OneAuditNS	13409	[3368, 4399, 7032, 7424, 7665, 7914, 13565, 25835, 26839, 30049]	8.4

The spread among all the trials (click to get an interactive chart):

Both versions of OneAudit do better than CLCA on a significant number of assertion trials; the spread goes below CLCA as well as above.
With no errrors, the audit always finishes in one round.
We removed two contests with the lowest margins: contest 14, a plurality contest with 4 winners (margin=0.0006 recount=0.0020), and contest 28, an IRV contest ( margin=0.0037 recount=0.0100). This probably models what would happen in a real election.
The contest with the lowest margin still in the audit is contest 15 (margin=0.0086 recount=0.0302)
The total mvrs used are dominated by the contest(s) with the lowest margin. By removing the close contests, we can greatly reduce the sampled mvrs. OTOH, its the close contests where RLAs are most needed.

Boulder2024: OneAudit for Redacted data

The Boulder County, CO, 2024 general election publishes pools of “redacted ballots” with vote totals, but no CVRS.

396,681 cards
12,297 redacted cards (3%) in 60 pools
65 contests (no IRV)
Both the cvrs and the redacted pool totals reference a BallotType, which can be used for Card Style Data.
The number of cards in each pool is not published, so we estimate it, and adjust contest Nc to be consistent. See CaseStudies for details.
There are 2 contests below the automatic recountMargin of .005, so we exclude them from the audit. The recount margin for Colorado is (winner - loser)/ winner, rather than margin = (winner - loser)/ Nc.
Risk limit is 3% per Colorado law.

Here are 1 CLCA and 10 trials of OneAudit for Boulder2024. The total number of MVRS sampled were:

type	avg	trials	avg / CLCA
CLCA	4800	[4800]	1.0
OneAudit	5857	[5545, 5580, 5801, 5851, 5902, 5909, 5948, 5958, 6025, 6058]	1.22

The spread among all the trials (click to get an interactive chart):

OneAudit suprisingly does better for the second and third lowest margins. TODO: investigate.
Most of the difference in total samples (table above) probably comes from the lowest margin assertion.

Findings so far:

Boulder County must publish the number of ballots in each pool to do a real audit.
The redacted pools should always use a single BallotType, so we can sample with styles.
To do IRV with redacted ballots, VoteConsolidations for the redacted ballots would have to be provided.
OneAudit is comparable to CLCA at this low percent (3%) of pooled ballots.
